Introduction: Redefining the Blue Line
For years, a clear hierarchy has existed in the world of consumer solid-state drives, one largely defined by the type of NAND flash memory within. At the top sat drives built with Triple-Level Cell (TLC) NAND, prized for their balanced performance and endurance. Occupying the budget tier were drives using Quad-Level Cell (QLC) NAND, a technology often viewed by the enthusiast community as a necessary compromise. QLC offered greater storage density and lower costs, but this came at the expense of write endurance and, most critically, a significant drop in performance during sustained write operations.
Into this established landscape enters the Sandisk WD Blue SN5100. This is not merely another budget-oriented drive; it represents a deliberate and ambitious effort by Western Digital and its SanDisk subsidiary to challenge these long-held preconceptions. By pairing its most advanced QLC NAND with a controller previously reserved for its enthusiast-grade "Black" series, the SN5100 blurs the lines between product tiers, aiming to deliver a premium experience at a mainstream price point.
This review seeks to answer a pivotal question for the storage market: Has QLC technology, as implemented in the SN5100, finally matured to the point where it can deliver an experience nearly indistinguishable from TLC for the vast majority of users? The evidence suggests that the SN5100 is more than just an incremental upgrade; it is a potential market disruptor that could redefine the performance floor for mainstream SSDs. This report will conduct a deep dive into the drive's architecture, put it through a gauntlet of synthetic and real-world performance tests, critically analyze its inherent weaknesses, and deliver a final verdict on its value and place in today's competitive market.
Under the Hood: Architecture and Specifications
The Brains of the Operation - Controller and Memory
At the heart of the WD Blue SN5100 lies a component selection that immediately sets it apart from typical value-oriented drives. It is powered by a proprietary SanDisk controller, identified as the Polaris 3, the very same high-performance controller found in the company's more premium, TLC-based WD Black SN7100 SSD. This decision to equip a "Blue" drive with "Black-level" silicon is a significant one. Historically, budget drives used less capable controllers, creating a clear performance gap. With the SN5100, the primary differentiator between Western Digital's product tiers shifts away from the controller's capability and almost exclusively to the type of NAND flash being used. This makes the purchasing decision far more nuanced, as consumers can now access top-tier burst performance in a mainstream product, provided their workload aligns with the drive's strengths.
The memory itself is SanDisk's latest 218-layer BiCS8 QLC NAND. This high layer count is a key technological enabler, allowing for increased storage density and performance that surpasses older generations of flash memory. It represents a substantial leap from the 112-layer or 162-layer NAND found in its predecessor, the WD Blue SN5000, and is fundamental to the drive's ability to challenge TLC-based competitors.
To manage costs, the SN5100 is a DRAM-less design. Instead of a dedicated onboard DRAM chip for mapping tables, it leverages the Host Memory Buffer (HMB) feature of the NVMe protocol. This allows the drive to utilize a small, 64MB portion of the host system's main RAM, a solution that modern controllers have made highly efficient, minimizing the performance penalty traditionally associated with DRAM-less architectures.
The Secret Sauce - nCache 4.0
The technology that enables the SN5100 to punch so far above its weight class is SanDisk's nCache 4.0. This is not a simple static cache but an intelligent, hybrid caching system designed to mask the inherent write-speed limitations of QLC NAND. It operates by treating a large, dynamic portion of the QLC flash as high-performance pseudo-SLC (pSLC) NAND. All incoming write operations are first directed to this fast buffer, which absorbs the bursts of activity typical of consumer workloads, such as saving documents, installing applications, or loading game levels. During periods of inactivity, the drive's controller then intelligently moves this data from the pSLC cache to the main QLC storage blocks in the background. This sophisticated mechanism is the primary reason the SN5100 can post such impressive real-world performance figures, effectively delivering a TLC-like experience for the vast majority of everyday tasks.
Physical Layout and Form Factor

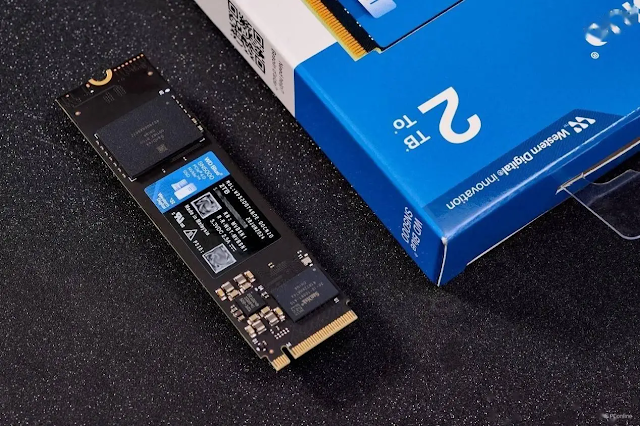

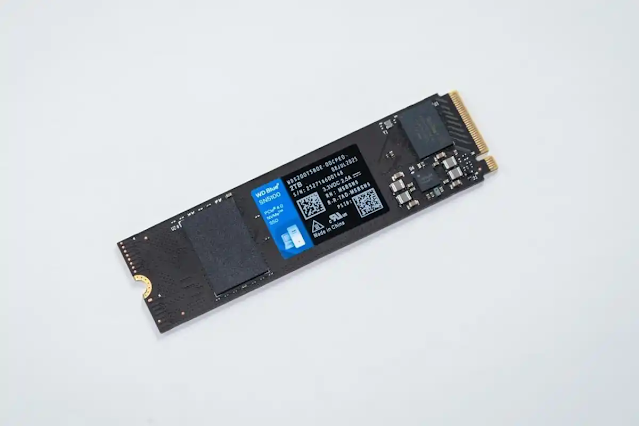

The SN5100 is built on a single-sided M.2 2280 printed circuit board. Remarkably, this minimalist design, featuring just the controller, power management circuitry, and a single NAND package, is maintained across all capacities, including the 2TB model reviewed here and the forthcoming 4TB version. This compact, single-sided layout makes it universally compatible with a wide range of devices, particularly thin-and-light laptops, small form-factor (SFF) desktops, and the PlayStation 5 console, where physical space and airflow are often constrained.
Key Specifications
To properly contextualize the SN5100, its specifications must be viewed alongside its key competitors. The table below provides a direct comparison between the 2TB SN5100 and its main QLC rival, its in-house TLC sibling, and a premium market leader.
| Feature | Sandisk WD Blue SN5100 (2TB) | Crucial P310 (2TB) | WD Black SN7100 (2TB) | Samsung 990 Pro (2TB) |
| Capacity | 2TB | 2TB | 2TB | 2TB |
| Interface | PCIe 4.0 x4 | PCIe 4.0 x4 | PCIe 4.0 x4 | PCIe 4.0 x4 |
| Controller | SanDisk Polaris 3 | Phison E27T | SanDisk Polaris 3 | Samsung Pascal |
| NAND Flash | 218-Layer BiCS8 QLC | Micron QLC | 218-Layer BiCS8 TLC | Samsung 176-Layer V-NAND TLC |
| DRAM | No (HMB) | No (HMB) | No (HMB) | Yes (2GB LPDDR4) |
| Sequential Read (Rated) | 7,100 MB/s | 7,100 MB/s | 7,250 MB/s | 7,450 MB/s |
| Sequential Write (Rated) | 6,700 MB/s | 6,000 MB/s | 6,900 MB/s | 6,900 MB/s |
| Random Read (Rated) | 1,000K IOPS | 1,000K+ IOPS | 1,000K IOPS | 1,400K IOPS |
| Random Write (Rated) | 1,300K IOPS | 1,000K+ IOPS | 1,400K IOPS | 1,550K IOPS |
| Endurance (TBW) | 900 TBW | 440 TBW | 1,200 TBW | 1,200 TBW |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years |
Data sourced from.
Peak Performance: Synthetic Benchmarks
Synthetic benchmarks are designed to measure the maximum theoretical throughput of a drive under idealized conditions, providing a baseline for its raw capabilities.
Pushing the Limits of PCIe 4.0
The WD Blue SN5100 2TB model carries an official rating of up to 7,100 MB/s for sequential reads and 6,700 MB/s for sequential writes. Independent testing validates these claims, showing the drive is fully capable of pushing the boundaries of its PCIe 4.0 x4 interface. In the FIO benchmark, the drive achieved an impressive sequential read speed of 7,329 MB/s and a write speed of 6,740 MB/s, comfortably meeting and even slightly exceeding its specifications. This confirms that the combination of the Polaris 3 controller and BiCS8 NAND can deliver flagship-level sequential performance.
The Random IOPS Story
The drive's performance in random operations presents a more complex picture. While rated for a very high 1,000,000 random read IOPS and 1,300,000 random write IOPS, benchmark results vary. FIO testing revealed strong random write performance at 931K IOPS, but a surprisingly low random read result of just 415K IOPS. This stands in stark contrast to its main QLC competitor, the Crucial P310, which posted a much stronger 1.16M random read IOPS in the same test. This discrepancy suggests that the SN5100's controller firmware may be heavily optimized for sequential throughput and write operations, at least within the specific parameters of this synthetic test. However, as subsequent real-world application tests will demonstrate, this particular metric does not appear to translate into a tangible performance deficit in everyday use.
Small File Performance (ATTO)
The ATTO benchmark, which measures performance across a range of different file sizes, shows the SN5100 performing smoothly and consistently. The drive demonstrates a preference for transfer sizes of 256KB or larger for read operations and 64KB or larger for writes. This indicates a well-rounded performance profile that is adept at handling the mix of small and large files commonly found in operating system tasks and application loading, reinforcing its suitability as a primary OS drive.
The Real-World Gauntlet: Gaming, Productivity, and AI
While synthetic benchmarks reveal a drive's theoretical limits, real-world application testing is the ultimate measure of user experience. It is in these tests that the WD Blue SN5100 truly defies its QLC origins and proves its mettle.
The True Test - Gaming Performance
For many PC builders, gaming performance is the most critical metric for a storage drive. Here, the SN5100 delivers a stunning, category-defying result. In the 3DMark Storage Benchmark, which runs traces of real-world gaming activities like loading games, saving progress, and installing files, the SN5100 achieves a score of 4,192. This not only surpasses its direct QLC competitor, the Crucial P310 (3,848), but also unexpectedly outperforms premium, DRAM-equipped TLC drives like the Crucial T500.
This exceptional outcome challenges the conventional wisdom that TLC NAND and an onboard DRAM cache are prerequisites for top-tier gaming performance. The access patterns of modern game loading are predominantly read-intensive. In this scenario, the SN5100 operates entirely within its massive and highly effective pSLC cache, where it can leverage the raw speed of its advanced controller and NAND. The result is that for the specific, crucial task of loading games, the SN5100 is not just "good enough"—it is demonstrably one of the best-performing PCIe 4.0 drives on the market, fundamentally altering the value equation for gamers on a budget.
Productivity and Daily Use (PCMark 10)
The drive's excellent performance continues in general productivity workloads. The PCMark 10 Storage Benchmark, which simulates a wide range of everyday tasks from application startup to file manipulation, rates the SN5100's performance as "excellent". It scores on par with both the premium Crucial T500 and its own TLC-based sibling, the WD Black SN7100. This confirms that for the average user, the SN5100 is indistinguishable from more expensive TLC drives during day-to-day operations, offering a snappy and responsive experience.
Emerging Workloads - AI and Large Model Loading
Reflecting a key marketing focus for the drive, the SN5100 performs competently in emerging AI-related tasks. In a test measuring the time to load Large Language Models (LLMs), the SN5100 demonstrated a slight advantage over the Crucial P310 when loading a smaller 7B parameter model, completing the task in 2.99 seconds versus 3.19 seconds. This highlights how its strong sequential read performance can benefit users engaging with local AI applications.
File Transfer Performance (DiskBench)
In a real-world file copy test using the DiskBench utility to transfer a custom 50GB dataset, the SN5100 again delivers impressive results. It performs effectively on par with the WD Black SN7100 and is surpassed only by the DRAM-equipped Crucial T500. This test serves as a practical validation of the nCache 4.0 technology, proving its ability to handle large, single-file transfers with speed and consistency.
PlayStation 5 Storage Expansion
The combination of its core attributes makes the SN5100 an outstanding candidate for expanding the storage of a PlayStation 5 console. Its strong PCIe 4.0 read performance easily meets Sony's requirements, while its cool-running nature and single-sided design ensure hassle-free installation and reliable operation without the need for an aftermarket heatsink. It has been described as an "absolute win for console users".
The QLC Reality Check: Sustained Writes, Thermals, and Efficiency
A comprehensive review requires an honest assessment of a product's weaknesses. For the SN5100, its primary limitation is a direct consequence of its QLC NAND architecture, though its strengths in other areas provide a compelling counterbalance.
The Performance Cliff - Sustained Write Analysis
The drive's nCache 4.0 technology is highly effective, but the pSLC cache is finite. For the 2TB model, this cache is exceptionally large, measuring approximately 466GB. For any write operation that fits within this massive buffer, the drive maintains a blistering speed of around 5 GB/s.
However, if a single, continuous write operation exceeds this 466GB threshold, the cache is exhausted, and the drive is forced to write directly to the slower QLC NAND. At this point, performance falls "off a cliff," dropping to a sustained write speed of approximately 400-450 MB/s. While this post-cache speed is superior to many older QLC drives, it is substantially slower than what modern TLC drives can sustain.
Context is King - Who Should Care?
This performance drop-off, while dramatic, must be placed in the proper context. For the overwhelming majority of consumer use cases—including gaming, web browsing, office productivity, and even moderate content creation—workloads consist of short, bursty writes that will almost never exhaust a 466GB cache in one go. For these users, the sustained write limitation is a purely academic concern they are unlikely ever to encounter.
This weakness becomes a critical factor only for a specific niche of power users. Professionals such as video editors who regularly transfer hundreds of gigabytes of raw 4K or 8K footage, or data scientists working with enormous datasets, could find this performance cliff to be a significant workflow bottleneck. For this small but demanding user group, a TLC-based drive remains the more appropriate choice.
The Silver Lining - Thermals and Power Efficiency
Pivoting from its primary weakness, the SN5100 exhibits class-leading strengths in thermal and power management. These benefits are not incidental; they are a direct result of its core architectural choices. The DRAM-less design eliminates a key heat-generating component, and the consolidation of all storage into a single, highly advanced 218-layer NAND package reduces the overall power footprint.
This engineering leads to exceptional efficiency. The 2TB model has a modest active power draw of just 4.1W. This low power consumption translates directly into excellent thermal performance. During strenuous testing, the drive peaked at a cool 67°C without any heatsink attached, running cool enough for any application. This makes it an ideal solution for thermally constrained environments like laptops, where it contributes to longer battery life and reduced fan noise, and for the PS5, where it ensures reliable performance without additional cooling hardware.
Market Positioning and The Value Equation
A Crowded Battlefield
The Sandisk WD Blue SN5100 enters a fiercely competitive PCIe 4.0 SSD market. Its primary challengers include the Crucial P310, another high-performing QLC drive; its in-house TLC-based sibling, the WD Black SN7100; and established premium TLC drives like the Samsung 990 Pro and WD Black SN850X.
The Pricing Conundrum
A critical factor governing the SN5100's success is its price. At its launch MSRP of around $150 for the 2TB model, the drive is in a difficult position. This price point places it in direct competition with superior all-around performers like the WD Black SN850X and Samsung 990 Pro, which do not have the same sustained-write limitations. The entire value proposition of the SN5100 hinges on its real-world street price. To be a compelling option, it must be priced competitively against other QLC drives and land at a significant discount compared to top-tier TLC models.
Software and Warranty
Western Digital backs the SN5100 with a solid 5-year warranty and a 900 Terabytes Written (TBW) endurance rating for the 2TB capacity. While this TBW rating is lower than the 1,200 TBW typical of a comparable TLC drive—an expected trade-off for QLC—it is more than sufficient for years of heavy consumer use. The package is enhanced by free access to the SanDisk Dashboard software for drive monitoring and firmware updates, and a license for Acronis True Image for seamless data migration, adding significant value for users upgrading their system.
The Verdict: A Mainstream Drive with Enthusiast Ambitions
The Sandisk WD Blue SN5100 is a drive of remarkable dualities. It successfully shatters the stereotype of QLC NAND, delivering chart-topping real-world performance in gaming and general productivity that rivals or even exceeds that of premium TLC drives. This is coupled with exceptional power efficiency and cool, quiet operation, making it a standout choice for a wide range of applications. This remarkable performance, however, is balanced by the inherent limitation of QLC technology: a significant drop in write speed during massive, sustained transfers—a scenario most users will never face, but one that is a deal-breaker for a select few.
Pros
Exceptional real-world performance, rivaling and even beating premium TLC drives in gaming and productivity benchmarks.
Excellent power efficiency and low thermal output, making it ideal for laptops, SFF PCs, and the PlayStation 5.
Sequential read speeds that nearly saturate the PCIe 4.0 interface, providing extremely fast loading times.
A massive and highly effective pSLC cache (nCache 4.0) that successfully masks QLC's weaknesses for the vast majority of users.
A comprehensive package with a 5-year warranty and useful software for drive management and data migration.
Cons
Poor sustained write performance after the large pSLC cache is exhausted, making it unsuitable for specific heavy-write professional workloads.
Launch pricing is uncompetitive, placing it against superior all-around TLC drives; its value is highly dependent on street price.
Lower endurance (TBW) rating compared to TLC drives, though still more than adequate for its target consumer audience.
Recommendations for the Buyer
Buy It Now If: You are a PC gamer building a new system or adding a dedicated game library drive. You are a laptop user seeking a cool, power-efficient, and highly responsive upgrade. You are a PlayStation 5 owner looking for a simple and effective storage expansion. For these read-dominant use cases, the SN5100 offers elite-tier performance where it matters most.
Consider It If: You are a general PC builder looking for a primary OS drive or secondary storage. Its purchase makes sense only if its street price falls to a level significantly below that of top-tier TLC drives like the WD Black SN850X or Samsung 990 Pro. Its ultimate value is entirely price-dependent.
Look Elsewhere If: Your workflow involves regularly writing massive files continuously, such as professional video editing with large source files or heavy data analysis. The sustained write performance cliff will be a tangible bottleneck. For these workloads, a TLC-based drive like the WD Black SN7100, WD Black SN850X, or Samsung 990 Pro remains a much wiser investment.
