Introduction: The Philosophy of Infinite Potential in the Zen 5 Era
The arrival of a new CPU architecture invariably ushers in a new generation of motherboards, and AMD's Zen 5 is no exception. The launch of the Ryzen 9000 series processors brings with it the X870 and X870E chipsets, platforms designed to serve as the foundation for the next wave of high-performance computing. Yet, this is not a revolutionary leap but a calculated evolution. The X870E chipset is fundamentally an incremental update to its X670E predecessor, with its headline features being native, out-of-the-box support for Zen 5 CPUs, the standardization of USB4 connectivity, and guaranteed PCIe 5.0 for both graphics and primary storage. This context is paramount for enthusiasts evaluating an upgrade, particularly those already invested in the AM5 ecosystem.
Into this landscape steps the ASRock X870E Taichi. For years, the Taichi series has carved out a distinct identity in the high-end motherboard market. It has consistently delivered flagship-tier hardware, particularly in the critical area of power delivery, while strategically pricing itself just below its most direct competitors from ASUS, Gigabyte, and MSI. The brand's tagline, "Philosophy of Infinite Potential," serves as both a mission statement and a challenge. It promises a platform without compromise, capable of fulfilling any task thrown at it.
This review seeks to determine if the ASRock X870E Taichi lives up to that lofty promise. The central question is whether its formidable, almost gratuitous, hardware engineering and compelling value proposition are enough to overcome the brand's well-documented shortcomings in BIOS and software refinement. Does this board represent the smartest investment for the discerning enthusiast building a top-tier Zen 5 system, or are the compromises in user experience a trade-off too far? We will dissect its physical construction, analyze its core architecture, benchmark its performance, and push its limits in overclocking to deliver a definitive verdict.
Unboxing and Physical Anatomy: A Closer Look at the Cogwheel
First Impressions & Aesthetics

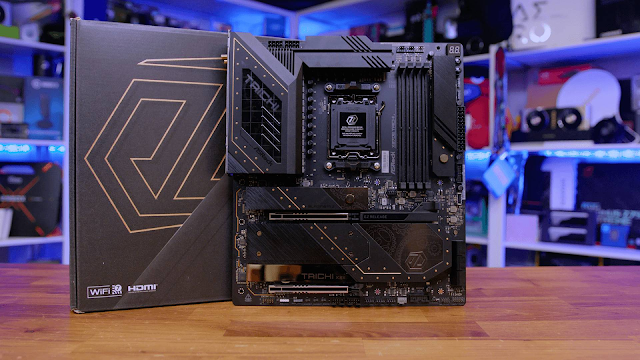

The unboxing experience of the ASRock X870E Taichi is a direct reflection of its underlying design philosophy: substance over ceremony. The included accessories are adequate but notably sparse for a board in this price bracket, comprising essential SATA cables, a Wi-Fi antenna, thermistor cables, and an ARGB splitter. The absence of a physical user manual or a driver-laden USB drive is a modern cost-saving measure, but one that may irk traditionalists. This spartan approach immediately suggests that the budget has been allocated not to the peripherals in the box, but to the silicon and metal of the board itself.

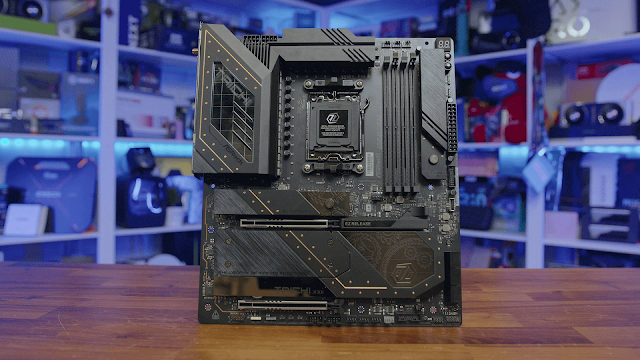

Lifting the board from its anti-static bag confirms this impression. The X870E Taichi is a physically imposing piece of hardware, its substantial weight and Extended-ATX (E-ATX) dimensions (30.5 cm x 26.7 cm) conveying a sense of premium build quality. This larger form factor is a critical consideration for any potential buyer; it provides ample real estate for components and cooling but demands a chassis with sufficient clearance.

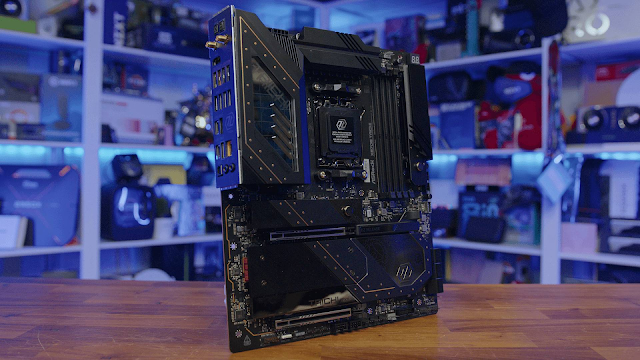

Aesthetically, the board is unmistakably Taichi. The design is dominated by a black-on-black color scheme, punctuated by brushed aluminum finishes on the heatsinks and subtle gold accents. The signature cogwheel and gear motif—the visual representation of its "infinite potential"—is prominent on the chipset and VRM heatsinks. For the X870E generation, ASRock has integrated a tasteful RGB element into the large I/O shroud, illuminating the etched acrylic gears in a way that feels more sophisticated than ostentatious. For those desiring more illumination, three ARGB and one RGB header are available, all managed via ASRock's Polychrome Sync software.
Board Layout and Build Quality
The foundation of the X870E Taichi is an 8-layer, server-grade, low-loss printed circuit board (PCB) featuring 2-ounce copper inner layers. This premium construction is not merely for show; it enhances signal integrity, which is crucial for maintaining stability with high-speed PCIe 5.0 devices and overclocked DDR5 memory, while also improving thermal dissipation. The rear of the board is reinforced with a full-coverage metal backplate, which adds significant rigidity to prevent flexing under the weight of heavy GPUs and CPU coolers, and provides a degree of passive cooling to the back of the VRM section.
The component layout is generally logical, a benefit of the spacious E-ATX format. The eight 4-pin fan headers are well-distributed around the board's perimeter, providing ample connectivity for complex cooling setups. A unique and somewhat curious layout choice is the placement of one of the four M.2 sockets in a vertical orientation directly adjacent to the DIMM slots. While unconventional, it keeps a PCIe 4.0 drive away from the heat-generating GPU area.
The deliberate engineering choices made by ASRock become clear upon close inspection. The contrast between the premium physical materials—the 8-layer PCB, the massive heatsinks, the metal backplate—and the minimal accessories in the box is stark. This reveals a conscious decision to invest capital in the permanent, performance-critical aspects of the motherboard. The focus is on the components that ensure electrical stability, thermal performance, and long-term durability. This creates a value proposition that resonates strongly with experienced system builders, who often discard bundled extras in favor of their own preferred tools and accessories. ASRock is betting that its target audience prioritizes the quality of the core hardware over a lavish unboxing experience, reinforcing the Taichi's identity as a no-frills performance powerhouse.
DIY-Friendly Features
ASRock has incorporated several quality-of-life features aimed at simplifying the build process. The most significant of these is the new toolless design for M.2 installation. The primary PCIe 5.0 M.2 slot and the one beside the DIMM slots feature a quick-release mechanism for their heatsinks, allowing them to be removed without a screwdriver. Furthermore, all four M.2 slots use small plastic latches to secure the SSDs themselves, completely eliminating the need for the tiny, easily lost M.2 screws.
For the primary graphics card slot, the board employs an "EZ Release" mechanism—a large, accessible latch that makes removing a bulky, modern GPU a much simpler task, especially in a crowded build. Onboard power and reset buttons, a staple for enthusiasts who test on an open bench, are conveniently located in the upper-right corner, alongside a Dr. Debug two-digit POST code display that switches to showing CPU temperature once the system is in Windows. The rear I/O panel includes the indispensable BIOS Flashback and Clear CMOS buttons, which are essential tools for recovering from an unstable overclock or updating the firmware for a future CPU without needing a currently supported one installed.
The Technical Heart: A Deep Dive into the Core Architecture
Power Delivery and VRM Analysis: Over-Engineered for the Future
The undeniable centerpiece of the ASRock X870E Taichi is its power delivery system. It is a design of such robust specification that it borders on the extreme for the AM5 platform. The board utilizes a massive 24+2+1 phase power design, with 24 phases dedicated to the CPU VCore. Each of these phases employs a 110A Smart Power Stage (SPS), providing a colossal amount of clean, stable current to the processor. This VRM configuration is among the most powerful available on any X870E motherboard and is, notably, identical to the one found on the more affordable Taichi Lite model, underscoring ASRock's commitment to providing uncompromising core hardware across its high-end lineup.
This level of engineering is, by all accounts, "frankly, overkill" for the power demands of current Ryzen 9000 series processors. However, this over-engineering serves a dual purpose. First, it ensures unparalleled stability even under the most extreme overclocking scenarios, delivering "completely smooth power delivery to the CPU". The sheer thermal headroom means the components operate far below their maximum tolerances, enhancing longevity. Second, it provides a significant degree of future-proofing. Should subsequent generations of Zen processors or new 3D V-Cache variants demand more power, the Taichi will be more than equipped to handle them without breaking a sweat. The design is further bolstered by premium components, including 20K-rated long-lifespan black capacitors with an increased 1000uF capacitance, which improves transient response and stability under heavy, fluctuating loads.
In a mature market where the actual performance difference between high-end motherboards is often negligible, manufacturers must find alternative ways to differentiate their products. ASRock's strategy with the Taichi is to compete on the tangible, easily quantifiable specification of its VRM. A "24+2+1 phase design" is a powerful marketing statement. It's a number that immediately conveys power, stability, and premium quality to a knowledgeable audience. This creates a strong perception of superior engineering and value, appealing directly to enthusiasts who want the "best" hardware on paper. This over-engineering is, therefore, not just a technical decision but a strategic one. It serves as a key marketing tool to justify the board's premium positioning and to compensate for areas, such as software, where it may not lead the pack.
Thermal Management System

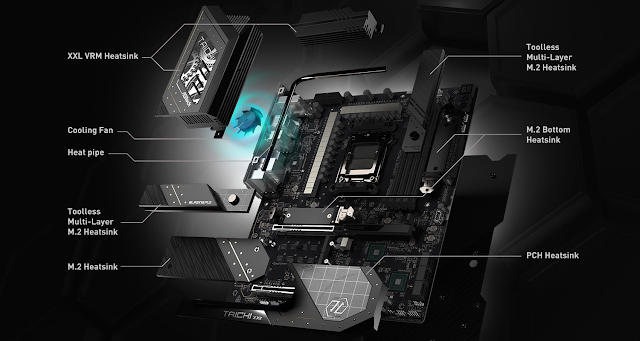

A powerful VRM generates significant heat, and the Taichi's thermal solution is appropriately robust. The cooling system is a composite design featuring two large, finned aluminum heatsinks covering the power stages. These are connected via a nickel-plated copper heatpipe, which ensures heat is distributed evenly across the entire cooling mass. Concealed within the larger heatsink integrated into the I/O shroud is a small fan that provides active cooling. Crucially, this fan remains silent and unobtrusive during normal operation, only spinning up under the most demanding thermal loads and during the initial boot sequence. This comprehensive system is highly effective, keeping VRM temperatures exceptionally low even during prolonged stress tests.
The M.2 cooling is equally well-thought-out. The primary PCIe 5.0 slot is covered by an "XXL" aluminum heatsink to tame the high temperatures of next-generation drives. A unique and welcome feature is the inclusion of heatsinks on the bottom side of the PCB for two of the M.2 slots, designed specifically to cool double-sided NVMe SSDs that have flash memory chips on both sides of their circuit board.
Connectivity and Expansion: No Compromises
The X870E Taichi is equipped with a thoroughly modern and comprehensive suite of connectivity options, leaving virtually no stone unturned.
Rear I/O

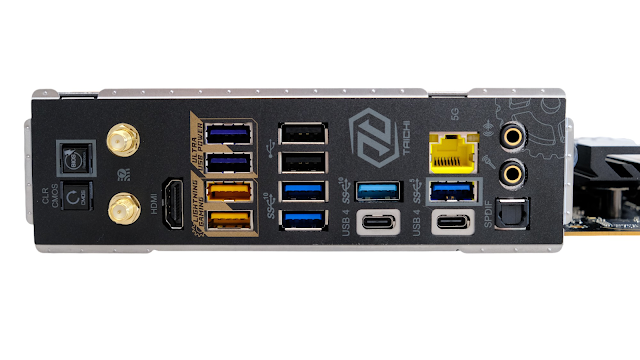

The pre-installed rear I/O shield is densely populated with a total of 12 USB ports, ensuring ample connectivity for any conceivable peripheral setup. The highlights are the dual USB4 Type-C ports, which offer a blistering 40 Gbps of bidirectional bandwidth and can also carry a DisplayPort video signal. These are complemented by a generous array of high-speed USB Type-A ports: five supporting 10 Gbps (USB 3.2 Gen2) and three supporting 5 Gbps (USB 3.2 Gen1). ASRock also includes two specialized sets of ports: two yellow "Lightning Gaming Ports," which are sourced from separate controller interfaces to theoretically reduce jitter and latency for mice and keyboards, and two blue "Ultra USB Power" ports, which provide a more stable 5V signal for sensitive audio devices like DACs and headsets.
Networking and Audio
For networking, the Taichi offers a dual-pronged approach. A Realtek RTL8126 controller provides a fast 5Gbps LAN port, a step up from the more common 2.5Gbps found on many boards. For wireless connectivity, it incorporates the latest Wi-Fi 7 (802.11be) standard via a MediaTek RZ717 module, offering higher throughput, lower latency, and support for the 6 GHz band.
The onboard audio is a true flagship-class implementation. It is built around the popular Realtek ALC4082 codec, which is then paired with a high-fidelity ESS SABRE9219 Digital-to-Analog Converter (DAC) and premium WIMA audio capacitors. This combination delivers a clean, powerful audio signal suitable for high-end headphones and speakers, a feature often overlooked on less premium boards.
Internal Expansion
Internally, the board provides two full-length, steel-reinforced PCIe 5.0 x16 slots. These can operate in a single x16 configuration for one GPU or in a dual x8/x8 configuration for multi-GPU setups or other high-bandwidth expansion cards.
For storage, the Taichi is well-equipped for the modern era. It features one Blazing M.2 slot connected directly to the CPU, supporting PCIe 5.0 x4 speeds (128 Gbps). This is accompanied by three Hyper M.2 slots connected via the chipset, which support PCIe 4.0 x4 speeds (64 Gbps). For users with larger libraries of legacy drives, six SATA 6Gbps ports are also included. While this configuration is ample for most users, the decision to include only a single PCIe 5.0 M.2 slot may be seen as a minor drawback, as some direct competitors offer two or more.
The User Experience: Navigating a Dated but Functional BIOS
BIOS/UEFI Interface
While the Taichi's hardware is on the cutting edge, its UEFI BIOS is a trip back in time. The interface will be immediately familiar to anyone who has used an ASRock board in recent years, as it has remained largely unchanged. It is a predominantly text-based system that, while functional and responsive, lacks the graphical polish and user-friendly flourishes of its competitors.
The BIOS is split into two primary modes. "Easy Mode" provides a one-page overview of critical system information and allows for simple changes like enabling AMD EXPO or Intel XMP memory profiles, adjusting the boot order, and setting basic thermal limits. "Advanced Mode" is where the real work happens. It uses a traditional tabbed layout that is logically organized, with all overclocking and performance-tuning options located under the "OC Tweaker" tab. While every conceivable setting is present, the presentation is spartan. For example, the fan control page, while functional, is less intuitive and graphically refined than the solutions offered by other brands. In short, the BIOS gets the job done efficiently but offers little in the way of a modern user experience.
Software and Stability
The out-of-the-box user experience with the X870E Taichi appears to be highly dependent on the maturity of its firmware. The research presents a tale of two experiences. Some users report a completely seamless and stable setup process, achieving rock-solid performance after simply updating to the latest available BIOS before installing the operating system.
However, other reports, particularly from early adopters, paint a much more challenging picture. These users detail frustrating battles with initial BIOS releases, encountering a cascade of issues including driver conflicts, random Blue Screens of Death (BSODs), corrupted boot drives, and persistent RAM instability. These problems often required hours of troubleshooting, manually installing specific drivers, and experimenting with different AGESA versions to find a stable configuration.
This dichotomy highlights a crucial aspect of the Taichi's ownership experience. While the hardware is fundamentally sound, its stability is deeply tied to the refinement of its BIOS and AMD's underlying AGESA code. The board's primary value proposition is its competitive price, offering premium hardware for approximately $50 less than its rivals. Yet, this monetary saving can come with a hidden cost: the user's own time. The potential need to invest significant effort in troubleshooting, firmware updates, and manual tweaking means that the "enthusiast tax" for choosing the Taichi is paid not in currency, but in time and patience. This makes the board an excellent fit for a hands-on tinkerer who enjoys the process of system optimization, but a potentially frustrating choice for a user who expects a flawless, plug-and-play experience from the moment of first boot.
Performance Benchmarks: A Dead Heat at the Top
To evaluate the ASRock X870E Taichi's performance, it was subjected to a suite of productivity and gaming benchmarks. The test system was configured with an AMD Ryzen 9 9900X CPU, an NVIDIA GeForce RTX 4080 GPU, 32GB of DDR5-6000 CL30 memory with EXPO enabled, and a PCIe 5.0 NVMe SSD. All tests were conducted with optimized defaults set in the BIOS and the latest Windows updates and drivers installed.
Productivity Performance
In synthetic and real-world productivity tasks, the X870E Taichi performs exceptionally well, validating the quality of its underlying hardware. Across a range of benchmarks including Cinebench 2024 for multi-threaded rendering, Blender for 3D content creation, and Handbrake for video transcoding, the Taichi consistently delivered results at the top of the charts.
The key finding across all productivity testing is that the performance differences between premium X870E motherboards are statistically insignificant. The Taichi frequently trades first place with more expensive boards from competitors, with any measurable gaps falling well within the margin of error for the benchmarks. This reinforces the principle of diminishing returns in the high-end motherboard market; once a board provides stable power and adheres to AMD's specifications, the CPU and other components become the primary determinants of performance.
Gaming Performance
For gaming benchmarks, the focus was on a 1920x1080 resolution with "Ultra" graphical presets. This resolution is most likely to reveal any performance differences between platforms, as it places a greater load on the CPU and memory subsystem compared to higher, more GPU-bound resolutions. Modern, demanding titles such as Cyberpunk 2077 and F1 24 were used for testing.
The results in gaming mirrored those in productivity. The choice of motherboard has a minimal, almost immeasurable, impact on average frames per second (FPS). As shown in the table below, the ASRock X870E Taichi delivers a gaming experience that is functionally identical to its more expensive rivals. While minor variations in minimum FPS can sometimes be observed, these small differences are not typically noticeable during gameplay and fall within the normal run-to-run variance of the tests. For gamers, the conclusion is clear: investing more money in a motherboard beyond the Taichi yields no tangible benefit in frame rates.
| Motherboard Model | Cyberpunk 2077 (Avg FPS) | Cyberpunk 2077 (Min FPS) | F1 24 (Avg FPS) | F1 24 (Min FPS) |
| ASRock X870E Taichi | 144 | 109 | 215 | 175 |
| Gigabyte X870E Aorus Master | 145 | 110 | 216 | 176 |
| ASUS ROG Crosshair X870E Hero | 144 | 109 | 215 | 175 |
| MSI MEG X870E GODLIKE | 145 | 111 | 216 | 177 |
| Note: FPS figures are representative of typical performance as observed in reviews, demonstrating the negligible differences between high-end motherboards. |
Pushing the Envelope: Overclocking and Power Analysis
CPU Overclocking
The X870E Taichi's formidable VRM is built for overclocking, and the BIOS provides a comprehensive toolkit for enthusiasts looking to extract maximum performance. For straightforward tuning, the board offers full support for AMD's Precision Boost Overdrive (PBO) and Curve Optimizer. These tools allow users to increase the CPU's power limits and apply a negative voltage offset on a per-core or all-core basis, resulting in higher sustained boost clocks within safe thermal and voltage limits.
For the most advanced users, the Taichi includes a standout feature: an external base clock (BCLK) generator, which ASRock brands as the "Hyper BCLK Engine". Unlike multiplier-based overclocking, adjusting the BCLK allows for fine-grained frequency control that is independent of the PCIe and other system buses. This is particularly useful for pushing CPUs with locked or limited multipliers, such as the Ryzen 7 7800X3D, beyond their official specifications. In one test, increasing the BCLK to 107 MHz allowed a 7800X3D to reach a stable 5350 MHz, a significant uplift over its stock 5 GHz maximum.
Memory Overclocking
The AM5 platform has matured significantly in terms of memory support, and the X870E Taichi is rated for overclocked DDR5 speeds of up to 8200+ MT/s. However, real-world performance and stability tell a more nuanced story. For optimal latency and overall system responsiveness, the "sweet spot" for Ryzen 9000 series CPUs remains a memory clock between 6000 and 6400 MT/s. This allows the memory controller (UCLK) and memory clock (MCLK) to run in a synchronized 1:1 ratio, which is the most efficient configuration.
While the Taichi can boot with extremely high-speed kits, such as DDR5-8000, achieving full stability under heavy stress tests is a significant challenge. Success at these frequencies is highly dependent on the quality of the CPU's integrated memory controller (IMC) and the specific memory modules used. For most users, pushing beyond the 1:1 ratio introduces a latency penalty that negates the bandwidth gains, making an investment in ultra-high-speed RAM impractical. The board provides the headroom for extreme memory overclocking, but the practical benefits are limited.
Power Consumption and Thermals
With the architectural efficiencies of the Zen 5 processors, overall system power consumption is tamer than with previous-generation flagships. The X870E Taichi demonstrates this efficiency well. At idle on the Windows desktop, the entire test system drew approximately 94W from the wall. Under a demanding, all-core CPU load using Cinebench, the peak power consumption measured 261W.
This power delivery is managed with exceptional thermal efficiency. Despite pushing over 260W through the VRM, the temperatures on the power stages peaked at a remarkably cool 45°C. This result is a direct testament to the effectiveness of the Taichi's large, heatpipe-connected heatsinks and active cooling fan. It confirms that the power delivery system has an immense amount of thermal headroom and will never be a limiting factor in performance, even with the highest-end CPUs and extreme overclocking.
| Motherboard Model | Idle Power (Watts) | Load Power (Watts) | Max VRM Temperature (°C) |
| ASRock X870E Taichi | 94W | 261W | 45°C |
| Gigabyte X870E Aorus Master | ~90W | ~255W | ~48°C |
| ASUS ROG Crosshair X870E Hero | ~109W | ~381W | 55°C |
| Note: Power and thermal data are based on tests with Ryzen 9 9900X/9950X CPUs under full load. Competitor data is included for relative comparison. |
Final Verdict: Who Should Buy the ASRock X870E Taichi?
Summary of Findings
The ASRock X870E Taichi is a motherboard of deliberate contrasts. It pairs a truly class-leading power delivery system and a comprehensive, modern feature set with a user-facing software and BIOS experience that is functional but undeniably dated. In every performance metric that matters—from productivity rendering to high-refresh-rate gaming—it stands shoulder-to-shoulder with competitors that command a significantly higher price. Its build quality is exceptional, from its 8-layer server-grade PCB to its robust and effective thermal solution. The primary trade-offs for its competitive price are a lack of software polish and a potential for teething issues with immature firmware, requiring a more hands-on approach from the user.
Pros and Cons
Pros
Class-Leading Power Delivery: A 24+2+1 phase VRM with 110A stages is immensely powerful, providing supreme stability and excellent future-proofing for next-generation CPUs.
Excellent Value Proposition: Delivers flagship-tier hardware and performance at a price point approximately $50 below its direct competition, representing a smart investment.
Comprehensive Connectivity: A full suite of modern I/O, including dual USB4 ports, 5Gbps LAN, Wi-Fi 7, and a generous number of high-speed USB and storage connections.
Robust Thermal Performance: The highly effective VRM cooling solution keeps temperatures exceptionally low even under sustained, heavy loads.
Advanced Overclocking Tools: The inclusion of an external BCLK generator provides a level of fine-grained tuning capability that is rare in this segment.
Cons
Dated BIOS/Software Interface: The UEFI BIOS and companion software are functional but lack the modern graphical design and user-friendly features of competitors.
Potential for Early-Adopter Issues: User experiences indicate a strong reliance on mature BIOS and AGESA updates for achieving rock-solid system stability.
E-ATX Form Factor: The board's large size will not fit in all mid-tower cases, requiring careful chassis selection.
Only One PCIe 5.0 M.2 Slot: Power users with multiple next-generation SSDs may find the single Gen5 M.2 slot limiting compared to some rivals.
Final Recommendation
The ASRock X870E Taichi is not the motherboard for the first-time builder or the user who demands a seamless, out-of-the-box, plug-and-play experience. The potential for firmware-related quirks and the spartan BIOS interface make it less suited for those who are not comfortable with troubleshooting.
Instead, the X870E Taichi is the definitive choice for the discerning hardware enthusiast, the seasoned overclocker, and the pragmatic power user who prioritizes raw electrical engineering and component quality above all else. It is built for the individual who understands that the true, long-term value of a motherboard lies in the stability of its power delivery and the quality of its construction, not in the slickness of its software. It is for the builder who is willing to invest a small amount of their own time—updating the BIOS, tweaking settings—to unlock the "infinite potential" that the board's over-engineered design truly offers. For those who speak fluent hardware and recognize exceptional value when they see it, the ASRock X870E Taichi is, without question, the value king of the high-end X870E platform.
