The launch of a new generation of graphics cards represents a significant event in the PC hardware sector, introducing not only enhanced performance but also new architectural paradigms and technological features. This report provides a comprehensive, expert-level analysis of the Gigabyte Aorus GeForce RTX 5070 Ti Master, a premium custom-designed model built on NVIDIA's latest Blackwell architecture. The evaluation extends beyond raw performance metrics to scrutinize the card's physical design, thermal efficiency, software ecosystem, and overall value proposition in a highly competitive market.
In-Depth Technical Architecture & Specification Breakdown
The foundation of a graphics card's performance is its underlying hardware architecture and core specifications. A thorough review requires more than a simple list of numbers; it demands an explanation of what these specifications mean for the end-user and how they shape the card's capabilities.
GPU Architecture and Core Configuration
The Gigabyte Aorus GeForce RTX 5070 Ti Master is powered by NVIDIA's new Blackwell 2.0 architecture, utilizing the GB203 graphics processor. This GPU is manufactured on a 5 nm process node and contains 45.6 billion transistors, a significant engineering feat. For rasterization and general compute, the GB203 chip in the RTX 5070 Ti features 8960 shading units, which are NVIDIA's equivalent to CUDA Cores. It also includes 280 Texture Mapping Units (TMUs) and 96 Render Output Units (ROPs).
For accelerated workloads, the card is equipped with 280 fifth-generation Tensor Cores dedicated to machine learning and AI applications, as well as 70 fourth-generation RT Cores for real-time ray tracing. A critical detail for understanding the product's market positioning is that the GB203 GPU is not a fully enabled die. Some shading units have been disabled to reach this specific configuration, a common practice in the semiconductor industry. The fully unlocked GB203 variant, with all 10,752 shaders enabled, is reserved for the higher-tier GeForce RTX 5080. This deliberate market segmentation allows NVIDIA to maximize manufacturing yields and create distinct performance tiers, which directly influences the product's pricing and placement relative to its more powerful sibling.
Clock Speeds and Overclocking Potential
The core and memory clock speeds are a primary determinant of a graphics card's raw computational power. NVIDIA's reference design for the GeForce RTX 5070 Ti specifies a base clock of 2295 MHz and a boost clock of 2452 MHz. However, the Gigabyte Aorus Master is a factory-overclocked model, which is a key differentiator for this premium SKU. The Aorus Master has a listed boost clock of 2670 MHz, a notable increase over the standard specification. This enhanced clock speed is designed to provide a performance advantage straight out of the box, saving users the effort and potential risks associated with manual overclocking.
During testing, the card was observed to perform even better than its factory specifications, achieving an average frequency of "just under 2,800 MHz". This ability to sustain higher clock speeds is a direct consequence of the card's superior power delivery and cooling solution, which allows it to operate within optimal thermal and power limits. The factory overclocking provides a performance uplift that is directly reflected in the card's premium pricing, positioning it as a top-tier choice for enthusiasts who demand maximum performance without the need for manual tuning.
Video Memory (VRAM): Capacity and Future-Proofing
The memory subsystem is one of the most critical components of a modern graphics card, particularly for gaming at high resolutions and with demanding texture packs. The Gigabyte Aorus GeForce RTX 5070 Ti Master is equipped with a substantial 16 GB of GDDR7 VRAM. This memory is connected via a 256-bit memory bus, resulting in a total bandwidth of 896.0 GB/s with an effective memory clock of 28 Gbps.
While 16 GB is currently more than sufficient for the vast majority of games at 4K and 1440p resolutions, its true significance lies in its long-term viability. As game developers continue to push graphical fidelity, VRAM requirements are expected to rise. The 16 GB buffer on the RTX 5070 Ti, combined with the new GDDR7 standard's high bandwidth, makes this card a more resilient and "future-proof" investment for gamers who play at high resolutions and anticipate keeping their hardware for several years. This VRAM configuration stands in stark contrast to previous generations where mid-range cards often had limited VRAM, which could quickly become a bottleneck in new titles.
Interfaces and Connectivity

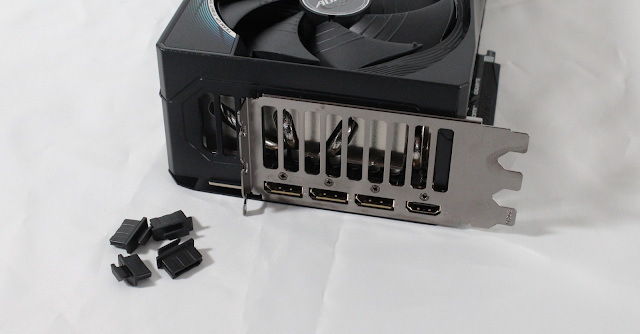

The connectivity options of a graphics card are essential for system compatibility and supporting modern display technologies. The RTX 5070 Ti connects to the motherboard via a PCI-Express 5.0 x16 interface, which provides double the bandwidth of the previous PCIe 4.0 standard. While this interface is a forward-looking feature that ensures future compatibility, the performance gain for current gaming workloads over a PCIe 4.0 interface is generally minimal and unlikely to be a bottleneck. The primary benefit today is to prevent performance limitations in future, more demanding titles.
Power is supplied through a single 16-pin power connector. This single-cable solution simplifies cable management within a PC build, offering a cleaner aesthetic compared to multiple 8-pin connectors. The Aorus Master also comes with a 12V-2x6 to 3x PCIe 8-pin adapter in the box, which is a welcome inclusion for users with older power supplies who wish to upgrade. The display outputs consist of three DisplayPort 2.1b ports and one HDMI 2.1b port, ensuring compatibility with the latest high-resolution and high-refresh-rate monitors.
Comprehensive Gaming Performance Analysis
The ultimate measure of a graphics card is its performance in real-world gaming scenarios. This section provides a detailed breakdown of the Gigabyte Aorus GeForce RTX 5070 Ti Master's capabilities across popular resolutions and compares it to key competitors and predecessors.
Performance Across Resolutions
The RTX 5070 Ti Master is a highly capable card that delivers exceptional performance at every major gaming resolution. At 1080p (Full HD), the card is an ideal choice for high-refresh-rate gaming. It averaged around 150 FPS across a test suite of six titles. In popular esports games like Apex Legends, the card pushed framerates to the extreme, nearing the 300 FPS cap with a result of 298 FPS. This performance ensures a buttery-smooth experience on high-refresh-rate monitors.
The 1440p (WQHD) resolution represents the card's sweet spot for balancing performance and visual fidelity. It averaged a strong 113 FPS across six titles. Specific results include 140 FPS in Marvel Rivals and a "solid average framerate" of 147 FPS in Call of Duty: Black Ops 6. The ample 16 GB of VRAM ensures that high-resolution textures can be loaded without performance penalties, guaranteeing a capable and long-lasting experience at 1440p.
The RTX 5070 Ti is positioned as a formidable 4K (UHD) gaming card. In demanding, rasterized titles, it delivered an average of 80 FPS in Cyberpunk 2077 and 88 FPS in Hogwarts Legacy. While it "can play some games in 4K with acceptable frame rates," it may struggle to maintain a consistent 60 FPS in the most graphically intensive titles without the aid of upscaling technologies. An example of this is Alan Wake II, where the card averaged a respectable but challenging 51 FPS in rasterization.
Competitive and Generational Comparisons
To properly contextualize the card's performance, a comparison with its predecessors and rivals is essential. The RTX 5070 Ti represents a strong generational leap. At 4K, it is approximately 11% faster than the RTX 4070 Ti SUPER and a significant 21% faster than the vanilla RTX 4070 Ti. This performance uplift is considered to be more substantial and provides a better overall value than the more expensive RTX 5080, which offered a less compelling generational jump.
The competitive landscape is highly nuanced. Across a broad 55-game benchmark suite, the Radeon RX 9070 XT was, on average, only 5% slower than the RTX 5070 Ti. However, this average masks significant per-game variations. For instance, the RX 9070 XT held a substantial lead in Call of Duty: Black Ops 6, being 19% faster at 4K, and was surprisingly 41% faster in Rocket League. Conversely, the RTX 5070 Ti was considerably faster in titles like Gears 5 and The Riftbreaker.
The RTX 5070 Ti "competes closely with the previous generation RTX 4080," often providing very similar performance. A benchmark in New World showed the 5070 Ti was only 1% slower, but at a launch MSRP that was "up to 53% cheaper". This direct comparison highlights the RTX 5070 Ti's compelling performance-per-dollar proposition relative to its direct predecessor.
The following table provides a summary of the card's performance against key competitors and predecessors.
| Game Title | Resolution | RTX 5070 Ti Master (FPS) | RTX 4080 (FPS) | RX 9070 XT (FPS) |
| Cyberpunk 2077 | 4K | 80 (Raster) / 93 (RT+DLSS+FG) | N/A | N/A |
| Hogwarts Legacy | 4K | 88 (Raster) / 122 (DLSS) | N/A | N/A |
| Call of Duty: Black Ops 6 | 1440p | 147 | N/A | N/A |
| New World | 1440p | 165 | 167 | N/A |
| The Riftbreaker | 4K | N/A | N/A | 24% Slower |
| Horizon Forbidden West | 4K | N/A | N/A | 11% Faster |
A Deep Dive into Next-Generation Technologies
Modern graphics cards are defined as much by their software and core-level innovations as by their raw hardware. The Blackwell architecture introduces several key advancements.
Ray Tracing and Path Tracing Performance
The RTX 5070 Ti's fourth-generation RT Cores provide an impressive performance boost for ray tracing. The card showed "admirable performance" with ray tracing enabled in testing. A prime example of this is its performance in a ray-traced and DLSS-enabled run of Cyberpunk 2077 at 4K, where the card achieved a strong 93 FPS, a notable improvement of nearly 15 FPS over its rasterized performance.
However, the card’s limits are tested by the most demanding path-traced titles. In Alan Wake II with DLSS, ray tracing, and Frame Generation enabled at 4K, performance was "not massively better". This demonstrates that while the technology is powerful, path tracing remains an extremely complex and computationally expensive rendering technique that can still push even next-generation hardware to its absolute limit, often requiring users to lower settings to achieve a more consistent frame rate.
DLSS 4 with Multi Frame Generation (MFG)
The RTX 5070 Ti features the new DLSS 4 with Multi Frame Generation (MFG), an evolution in NVIDIA's neural rendering technology. DLSS 4 uses a new "transformer model" to improve image quality and temporal stability, which is a subtle but crucial upgrade from previous versions, as it reduces artifacts like ghosting and improves detail in motion.
The most impactful feature of this generation is MFG, which uses AI to generate up to three new frames for every single frame rendered by the GPU. This can result in a dramatic increase in framerates, as seen in Hogwarts Legacy, where enabling DLSS boosted the average 4K framerate from 88 FPS to 122 FPS, a 40 FPS jump. Another example is in Cyberpunk 2077, where a test showed a jump from 46 FPS to 157 FPS with 4x frame gen enabled.
However, this technology is not without a key trade-off: latency. While MFG significantly improves the perceived smoothness on a high-refresh-rate display, it can increase system latency. The Cyberpunk 2077 test showed that while the frame rate increased dramatically with frame generation, the PC latency also rose from 43ms to 55ms. NVIDIA's Reflex technology can help to mitigate this increase, but the fundamental trade-off remains. This means that while MFG is an excellent feature for single-player and cinematic experiences, it may be less suitable for competitive games where responsiveness is paramount.
Thermal, Acoustic, and Power Efficiency Evaluation
The Gigabyte Aorus Master's physical design is a key selling point, as it directly influences the card's thermal, acoustic, and power performance. These factors are crucial for the long-term reliability and comfort of the user's system.
Cooling System and Temperatures

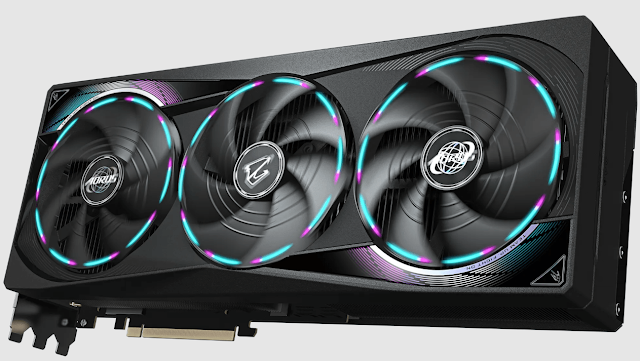

The Aorus Master model is built around Gigabyte's flagship WINDFORCE cooling system. This is a triple-fan, quad-slot solution designed to maximize heat dissipation. Key technologies within this system include "Hawk fans" with unique blade designs, a large vapor chamber that directly contacts the GPU, superconducting heat pipes, and an angular fin design that increases the surface area for heat exchange.
The effectiveness of this cooling solution is reflected in the thermal performance. During stock testing, the card maintained a low peak temperature of just 65 °C. Even when manually overclocked without voltage adjustments, the peak temperature only increased slightly to 69 °C. These low temperatures demonstrate that Gigabyte's engineering efforts were successful in creating a card with significant thermal headroom. This, in turn, allows the card to maintain higher boost clocks for longer periods, leading to more consistent performance during extended gaming sessions.
Power Consumption and PSU Recommendations
The GeForce RTX 5070 Ti has a rated Thermal Design Power (TDP) of 300 W, which is a slight increase over its predecessor, the RTX 4070 Ti SUPER's 285W TDP. The actual measured peak power consumption during testing was found to be lower than the TDP, reaching 266W at stock and 279W when overclocked. This difference between the rated TDP and the real-world power draw indicates a high degree of power efficiency and suggests that the Aorus Master's power delivery system is robust.
Gigabyte recommends a minimum 750W power supply for the card, while some sources suggest a 700W PSU. The 750W recommendation is a safe, conservative estimate that accounts for the power draw of the entire system, ensuring stable operation even under a full load.
Acoustic Profile and Coil Whine
The physical design of the Aorus Master also contributes to its acoustic profile. The card's Hawk fans are engineered to provide ample airflow and pressure while minimizing noise, ensuring the card "remains quiet even during more challenging workloads". While the fans may become "noticeable when they ramp up", the overall noise profile is described as a "deep hum" rather than an irritating high-pitched whine.
A common concern with high-end graphics cards is coil whine, an audible buzzing sound produced by electronic components. The Aorus Master model was noted to be exceptionally well-behaved in this regard. The card "did not generate noticeable coil whine" under normal gaming loads. It only appeared when the frame rate reached "extremely high levels", such as in game menus where the GPU is not under significant load but is pushing thousands of frames per second. This finding suggests a high-quality power delivery system that effectively prevents the issue in typical gaming scenarios.
Overclocking Headroom and Performance Scaling
For enthusiasts, the potential for manual overclocking is an important consideration. While the Gigabyte Aorus Master comes with a significant factory overclock, it still provides some room for manual tweaking.
Overclocking Limits and Performance Gain
During manual overclocking tests, reviewers were able to achieve stable increases of +211 MHz for the core clock and +1500 MHz for the VRAM clock. This resulted in an impressive peak core clock of approximately 3,157 MHz and a memory clock of 1,938 MHz. The overclocking yielded a "slight performance increase," which was visible in benchmarks.
This outcome highlights an important concept: diminishing returns. Since the Aorus Master is a premium, factory-overclocked card, it is already highly tuned for performance and stability right out of the box. The significant boost in clock speeds from the factory-overclocked model means that the available headroom for manual overclocking is limited. For users who prioritize a high-performance experience without the hassle of manual tuning, the Aorus Master's out-of-the-box performance is more than sufficient. For hardcore enthusiasts, the card's limited manual overclocking potential may be a trade-off to consider.
Software, Drivers, and User Experience
The user experience with a graphics card is not limited to the hardware itself; it is profoundly shaped by the accompanying software and drivers.
Gigabyte Control Center (GCC) Review
The Gigabyte Aorus Master's unique features, such as the LCD Edge View and RGB Halo lighting, are controlled through the Gigabyte Control Center (GCC) software. The LCD screen is a standout feature, capable of displaying real-time GPU information, custom text, images, or GIFs, while the RGB Halo feature provides a striking visual effect around the fans.
However, the user feedback on the GCC software is highly polarized. Some users find it to be a "godsend" and a significant improvement over Gigabyte's older, clunky software. Other users have labeled it "the worst software ever" and "adware," citing stability issues and the inclusion of bloatware like Norton Antivirus during installation. This stark contrast in user experience indicates a significant disconnect between the hardware's premium quality and the software's inconsistent functionality. While the software can work seamlessly for some users, others have reported bugs and frustrating issues, which is a notable concern for a premium product.
The Broader NVIDIA Software Ecosystem
Beyond Gigabyte's proprietary software, the RTX 5070 Ti benefits from NVIDIA's robust and feature-rich software ecosystem. The card is fully compatible with NVIDIA's GeForce Experience, which provides easy-to-use tools for driver updates, game optimization, and video capture via ShadowPlay. The card also leverages key NVIDIA technologies like NVIDIA Reflex, which helps to reduce system latency, thereby mitigating the latency increase from technologies like Multi Frame Generation. NVIDIA is also integrating its Blackwell architecture into its GeForce NOW cloud gaming platform, offering new features like Cinematic Quality Streaming and supporting resolutions up to 5K at 120 FPS. This extensive ecosystem of features and services adds significant value to the hardware, offering a more complete and integrated experience than what is available from competitors.
Price-Performance Analysis and Final Verdict
The final evaluation of a graphics card hinges on its value proposition. The Gigabyte Aorus GeForce RTX 5070 Ti Master, as a premium custom model, presents a complex case study in price versus performance.
The Price-Performance Conundrum
The official Manufacturer's Suggested Retail Price (MSRP) for the reference NVIDIA GeForce RTX 5070 Ti is a competitive $749.99. At this price point, the card is considered to be "an excellent 4K graphics card" and "the most reasonable Blackwell graphics card to actually buy". However, the Aorus Master model is a premium, non-MSRP variant, and its real-world street price is significantly higher, with reports showing prices ranging from $979 to over $1,300.
This price disparity is the central dilemma. While the card offers a fantastic value proposition at MSRP, the premium price of the Aorus Master model "erodes the value proposition". When the price creeps toward or exceeds $900, the card becomes a harder recommendation, as alternatives like a discounted RTX 4080—with its similar performance and larger VRAM buffer—become more compelling.
Target Audience Recommendation and Alternatives
The Gigabyte Aorus GeForce RTX 5070 Ti Master is a phenomenal piece of hardware, but its recommendation depends heavily on the user and market conditions. It is an ideal choice for enthusiasts who seek a premium, factory-overclocked card for high-refresh-rate 1440p gaming or a capable, future-proofed 4K card for less demanding titles. It is a compelling upgrade for users on older cards (e.g., RTX 3070 Ti or older) who wish to harness the power of next-gen technologies like DLSS 4.
Key alternatives include:
NVIDIA GeForce RTX 4080: If a user can find a discounted RTX 4080, it may be a better option. It offers similar performance and has more VRAM, which could be a deciding factor for long-term 4K gaming.
AMD Radeon RX 9070 XT: The direct competitor from AMD offers very similar rasterized performance, and in some games, it even pulls ahead. The decision between the two comes down to a user's priorities: the RX 9070 XT offers exceptional pure gaming performance, while the RTX 5070 Ti offers a more complete ecosystem with superior ray tracing and DLSS support.
Final Verdict
The Gigabyte Aorus GeForce RTX 5070 Ti Master is an exceptional graphics card that delivers impressive performance, a sophisticated and effective cooling solution, and access to NVIDIA's full suite of next-generation technologies. The card's factory overclocking and robust physical design make it a standout premium product. However, its value proposition is entirely dependent on its street price. If a user can acquire the card at a price close to the $749.99 MSRP, it represents an outstanding value and is a definitive recommendation. At its higher real-world street price, it remains a fantastic piece of hardware, but buyers should carefully weigh its cost against the performance offered by strong alternatives in both the NVIDIA and AMD lineups.
